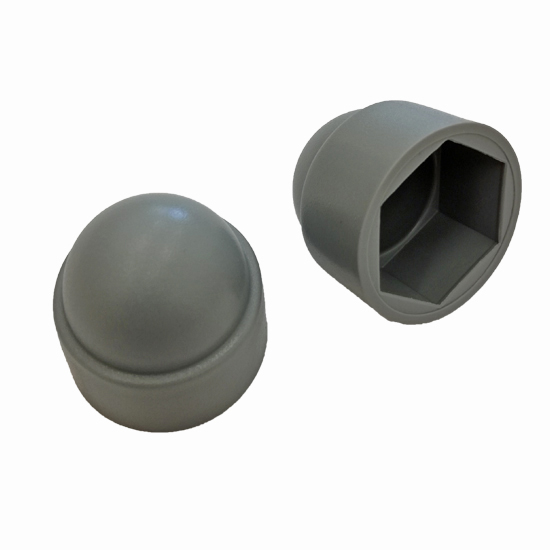

Screw and nut caps, LDPE, grey
Bolt and nut covers ideal for masking the heads of DIN hexagon head bolts and nuts. Can be used in all industries.
- Material: polyethylene
- Color: gray
| Product name | Product code | Height H2 (mm) | Diameter d (mm) | Height H (mm) | Metric | Diameter D (mm) | Sw | Quantity |
|---|---|---|---|---|---|---|---|---|
| Bolt and nut covers, LDPE, gray | 21856 | 17,4 | 26,5 | 30,3 | M18 | 33,3 | 27 |
|
| Screw and nut covers, LDPE, gray | 21857 | 18,0 | 29,0 | 33,5 | M20 | 36,5 | 30 |
|
| Screw and nut caps, LDPE, gray | 21858 | 20,0 | 31,3 | 36,0 | M22 | 38,9 | 32 |
|
| Screw and nut covers, LDPE, gray | 21859 | 20,2 | 34,5 | 39,3 | M24 | 43,9 | 36 |
|
| Screw and nut covers, LDPE, gray | 21860 | 24,1 | 41,0 | 46,5 | M27 | 50,0 | 41 |
|
| Screw and nut covers, LDPE, gray | 21861 | 24,8 | 45,8 | 51,3 | M30 | 56,0 | 46 |
|
| Screw and nut caps, LDPE, gray | 21862 | 28,3 | 48,7 | 56,2 | M33 | 59,5 | 50 |
|
| Bolt and nut covers, LDPE, gray | 21863 | 29,2 | 54,1 | 58,0 | M36 | 66,0 | 55 |
|
| Screw and nut covers, LDPE, gray | 21864 | 34,6 | 59,5 | 61,0 | M39 | 72,0 | 60 |
|
| Screw and nut caps, LDPE, grey | 21865 | 36,6 | 64,0 | 63,1 | M42 | 76,6 | 64 |
|
| Bolt and nut caps, LDPE, gray | 21866 | 34,5 | 68,4 | 88,4 | M45 | 84,0 | 70 |
|
| Screw and nut covers, LDPE, gray | 09840 | 10,1 | 16,9 | 20,3 | M10 | 21,6 | 17 |
|
| Bolt and nut covers, LDPE, gray | 09841 | 11,4 | 18,9 | 21,9 | M12 | 23,6 | 19 |
|
| Bolt and nut caps, LDPE, gray | 09842 | 12,5 | 21,9 | 24,2 | M14 | 27,4 | 22 |
|
| Bolt and nut caps, LDPE, gray | 09843 | 14 | 23,9 | 27,2 | M16 | 29,6 | 24 |
|
| Caps for screws and nuts, LDPE, gray | 21849 | 6 | 7,9 | 9,5 | M5 | 10,6 | 8 |
|
| Krytky skrutiek a matíc, LDPE, šedé | 21850 | 7,3 | 9,9 | 13,4 | M6 | 13,2 | 10 |
|
| Bolt and nut covers, LDPE, grey | 21851 | 8,7 | 12,9 | 16,5 | M8 | 17,6 | 13 |
|
